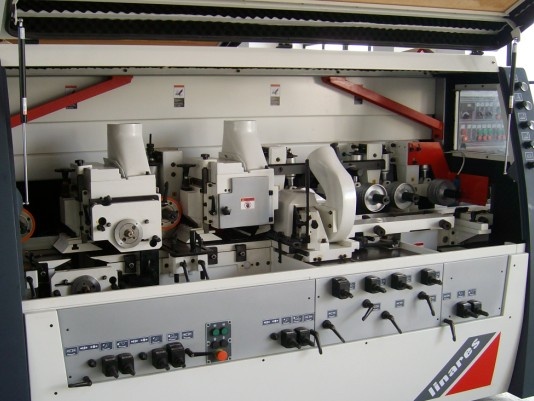

| Linares Four Side Moulder |
DL4006 |
DL4007 |
| Working wood block width |
20-230mm |
20-230mm |
| Spindle number |
6 |
7 |
| Working wood block thIckness |
6-150mm |
6-150mm |
| Spindle rotation speed |
6000rpm (8000rpm optional) |
6000rpm (8000rpm optional) |
| Cutter head spindle dia. |
40mm(50mm optional) |
40mm(50mm optional) |
| Feeding wood block speed |
5-60m/min |
5-60m/min |
| Feed table&guide rail adjustable |
10mm |
10mm |
| Horizontal/Vertical spindle adjustalbe |
22mm |
22mm |
| Feed table standard length |
1200mm |
1200mm |
| Minimum working wood block length |
228mm |
228mm |
| Max working air pressure |
6 Mpa |
6 Mpa |
| 1st bottom horizontal motor power |
7.5kw/10hp |
7.5kw/10hp |
| Left side vertical motor power |
7.5kw/10hp |
7.5kw/10hp |
| Vertical side vertical motor power |
7.5kw/10hp |
7.5kw/10hp |
| 2nd right vertical motor power |
without |
7.5kw/10hp |
| Horizontal top spindle motor power |
15kw/20hp |
15kw/20hp |
| 2nd top horizontal spindle motor power |
11kw |
11kw |
| 2nd bottom horizontal spindle motor power |
7.5kw/10hp |
7.5kw/10hp |
| Lifting motor power |
1.5kw/2hp |
1.5kw/2hp |
| Feeding wood block motor power |
5.5kw |
5.5kw |
| Horizontal cutting dia. |
125-200mm |
125-200mm |
| Vertical cutting dia. |
125-200mm |
125-200mm |
| Net weight |
4200kg |
4400kg |
