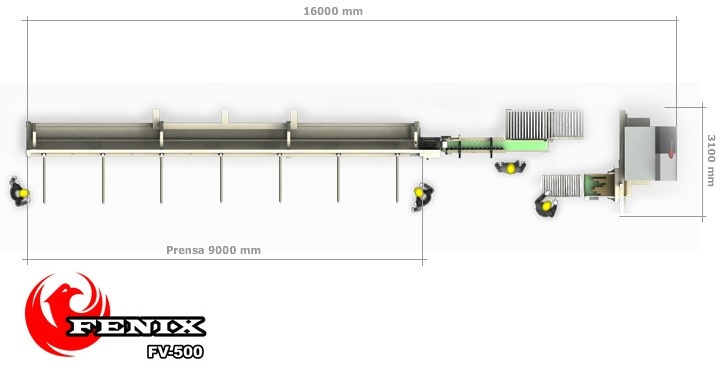

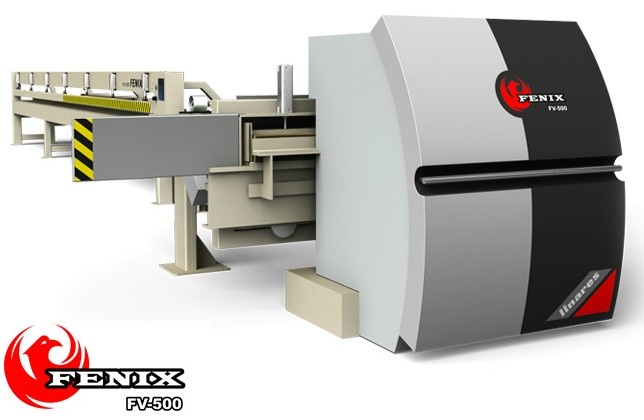

Product name : Finger Jointer Line
Item : FV-500
 Enlarge Image                   Back
←[Previous Product]


Details:
Min-max length ..................150-900mm

Min-max thickness ..................15-50mm

Min-max width ..................30-150mm

Max joint length..................9m (6m,12m optional)





Cutter saw incisoras diameter ..................150mm

Cutter diameter ..................250mm

Milling spindle diameter..................250mm

Notch saw diameter .................250mm

Gluing equipment included

engine power saws incisoras..................2x1.8kw

Engine power breaker.................5.5kw

spindle motor power................15kw

disposer motor power saws..................2.2kw

the hydraulic central power..................3kw

suction air speed..................30m/sec

suction volume..................6000m3/h

Suction dia...................1x250mm-1x100mm
